ControlLogix DC Digital Input Modules

1756-IB16

16 inputs 12/24V DC sink, use 1756-TBNH, 1756-TBSH

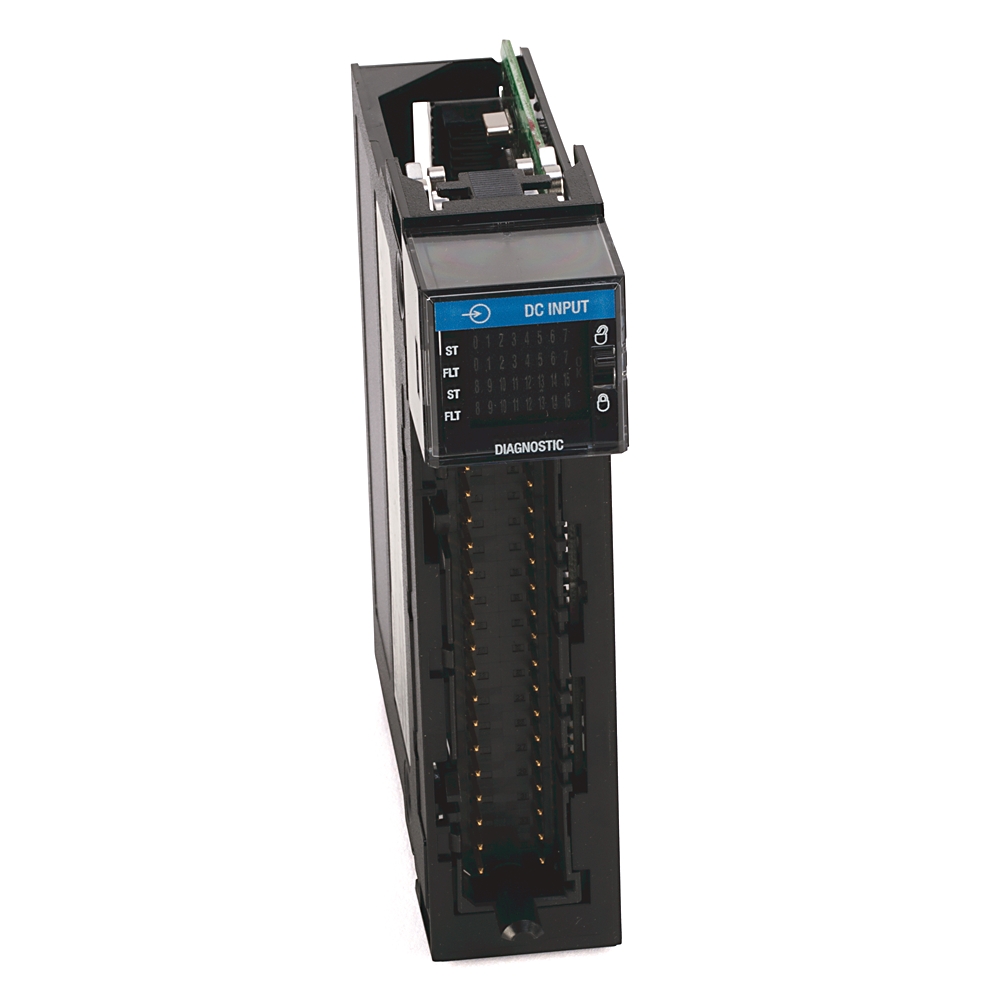

16 diagnostic inputs 12/24V DC sink, use 1756-TBCH, 1756-TBS6H

16 individually isolated inputs 12/24V DC sink/source, use 1756-TBCH, 1756-TBS6H

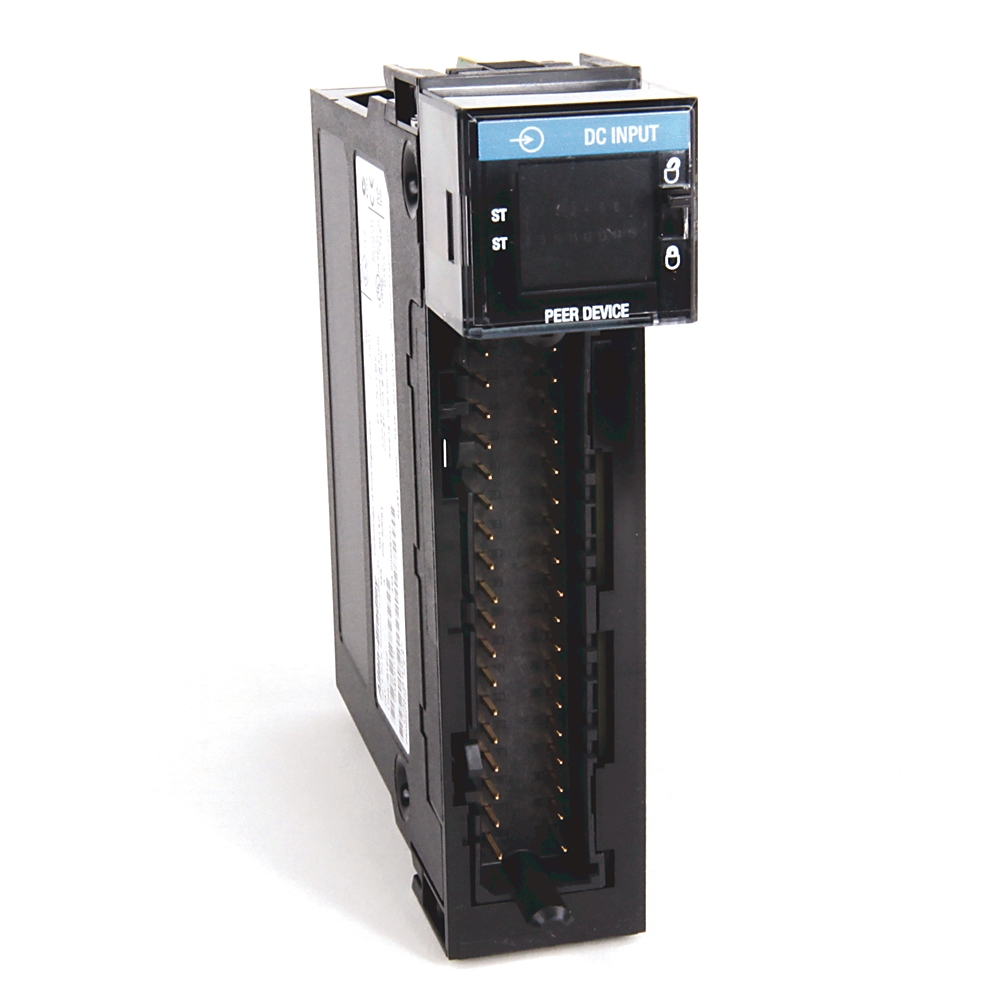

16 high-speed, individually isolated inputs 12/24V DC sink/source, use 1756-TBCH, 1756-TBS6H

32 inputs 12/24V DC sink, use 1756-TBCH, 1756-TBS6H

16 inputs 48V DC sink, use 1756-TBNH, 1756-TBSH

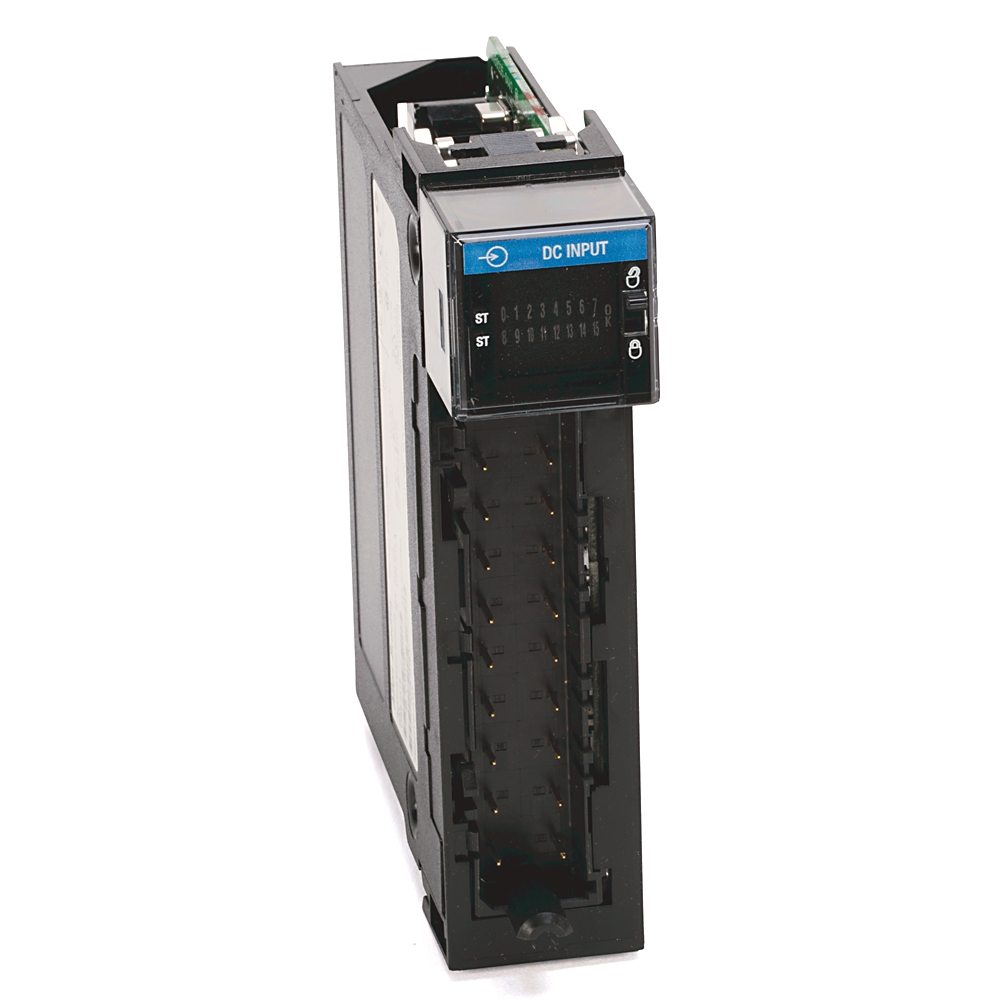

16 inputs 5V DC TTL source (Low = True), use 1756-TBNH, 1756-TBSH

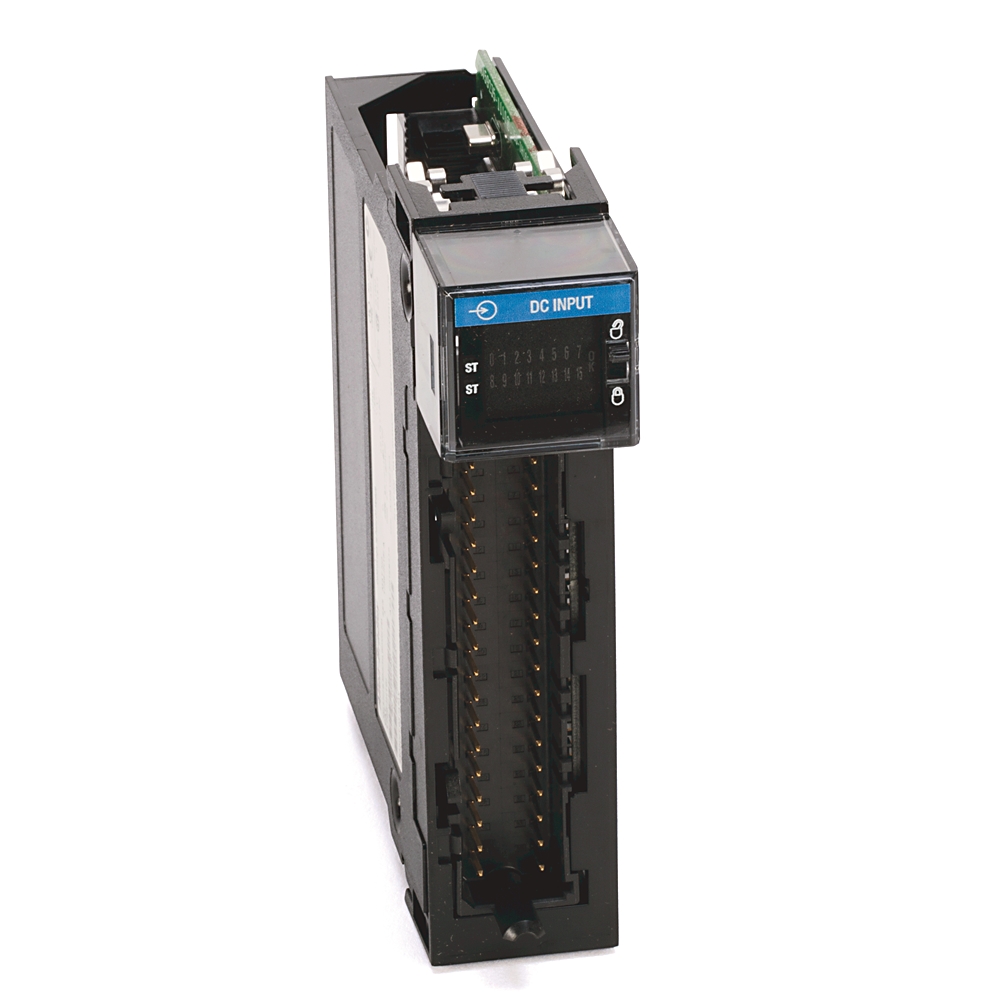

16 individually isolated inputs 125V DC sink/source, use 1756-TBCH, 1756-TBS6H

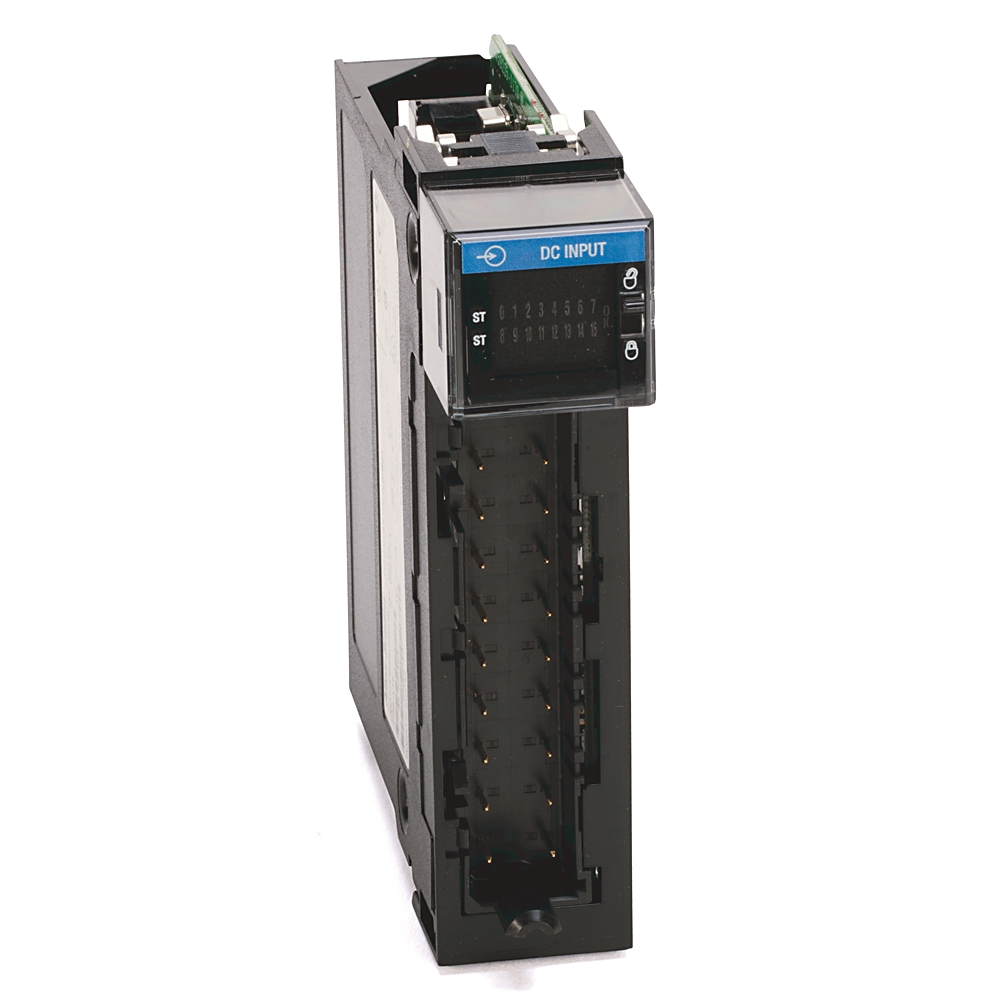

16 inputs 12/24V DC source, use 1756-TBNH, 1756-TBSH

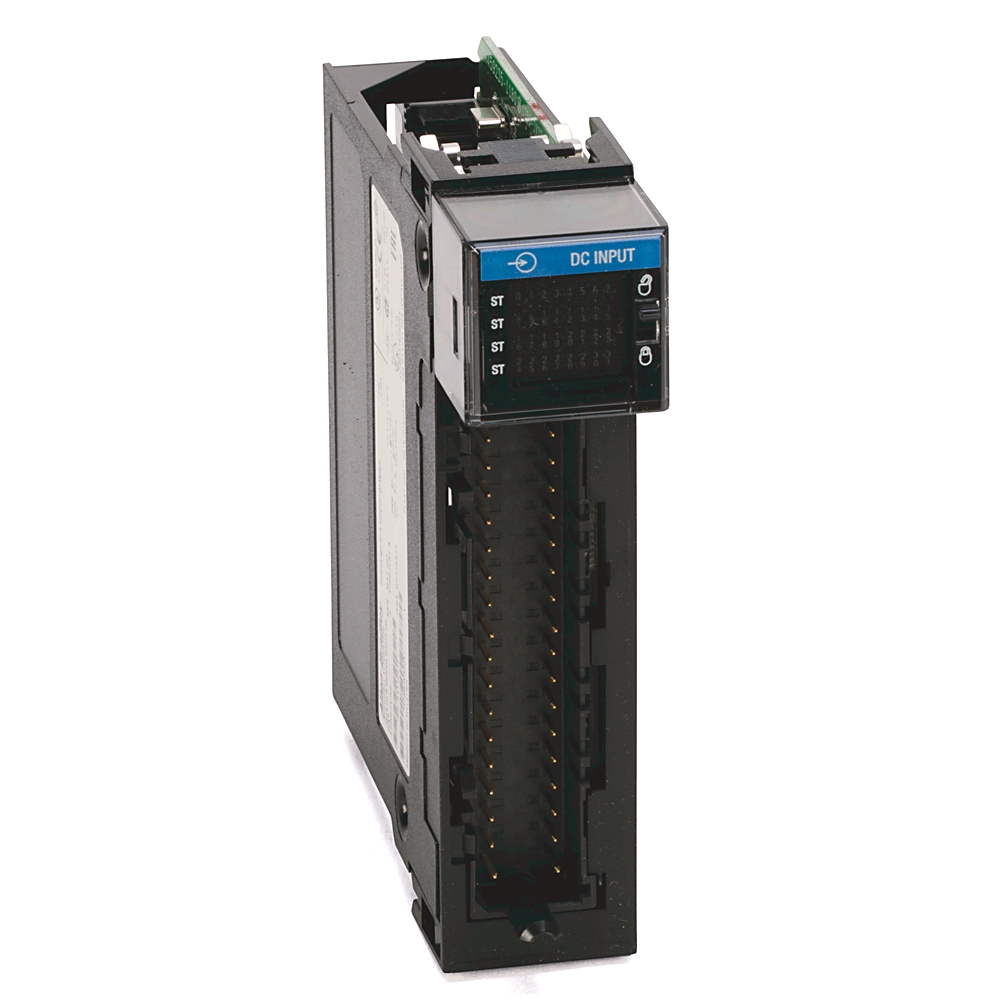

32 inputs 12/24V DC source, use 1756-TBCH, 1756-TBS6H
