ControlLogix Analog Input Modules

1756-IF16

16 single-ended inputs 8 differential, use 1756-TBCH, 1756-TBS6H

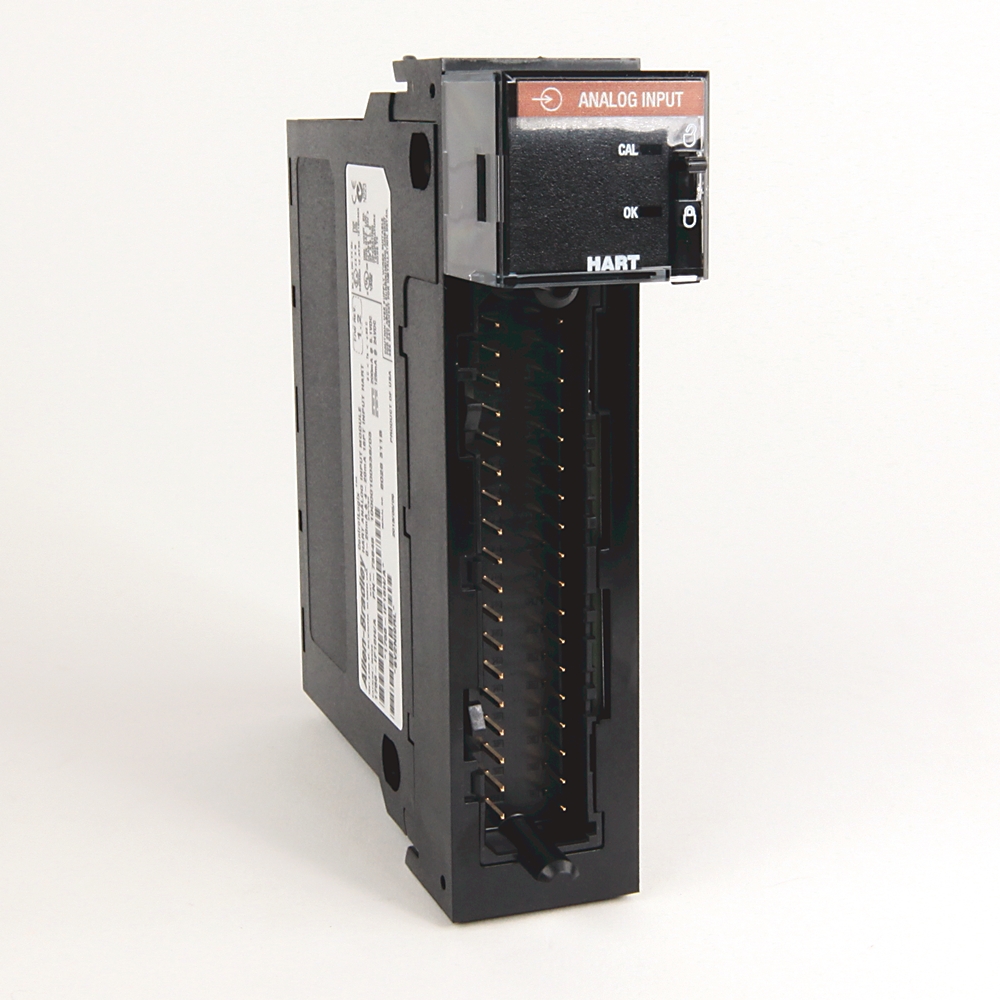

16 differential current inputs, HART interface, use 1756-TBCH, 1756-TBS6H

16 individually isolated current inputs, HART interface, use 1756-TBCH, 1756-TBS6H

6 individually isolated inputs, current sourcing, use 1756-TBNH, 1756-TBSH

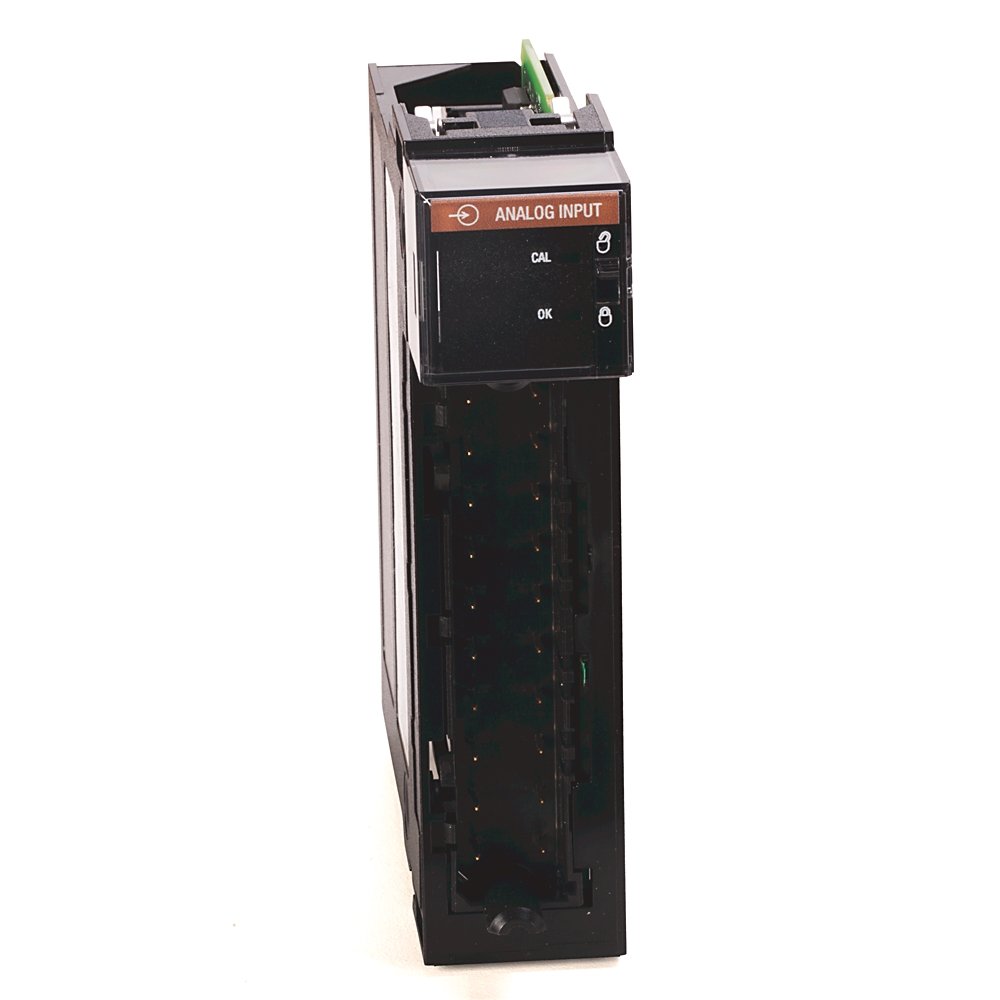

6 individually isolated inputs, 1756-TBNH, 1756-TBSH

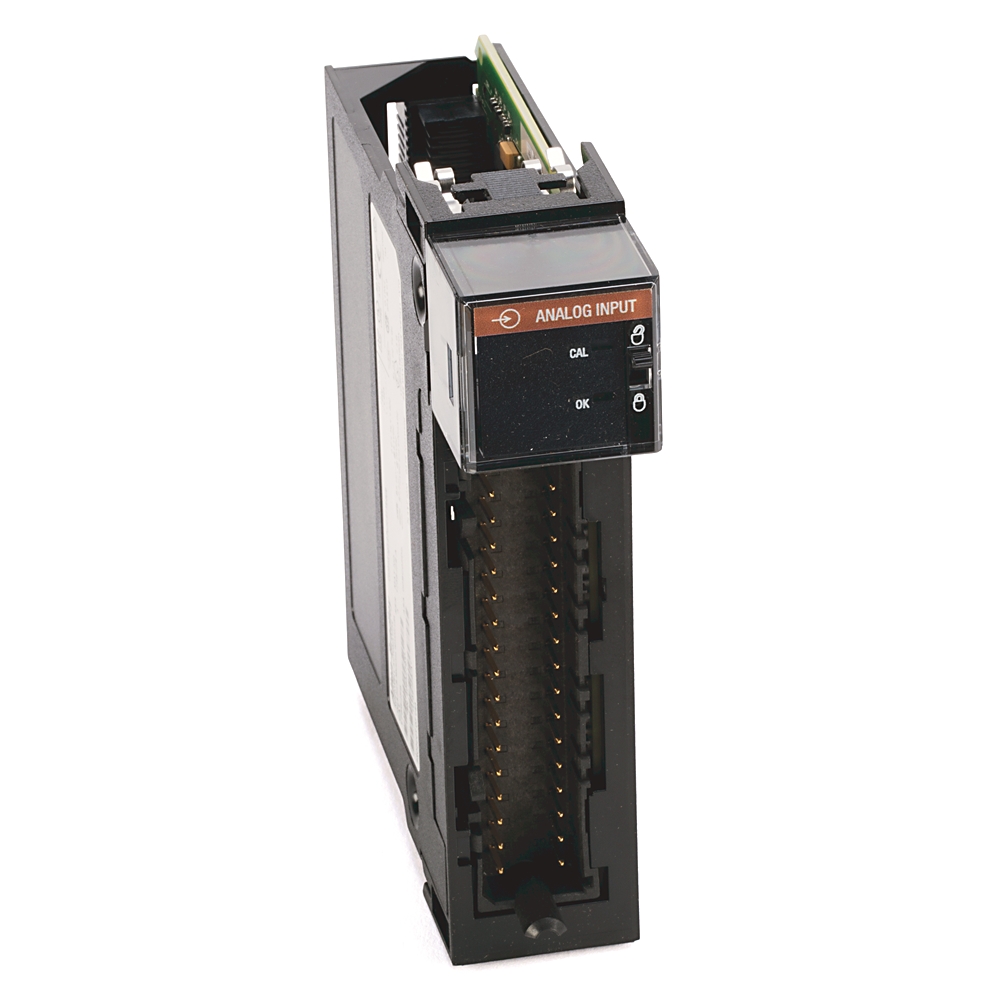

8 single-ended inputs 4 differential inputs 2 high-speed differential inputs, use 1756-TBCH, 1756-TBS6H

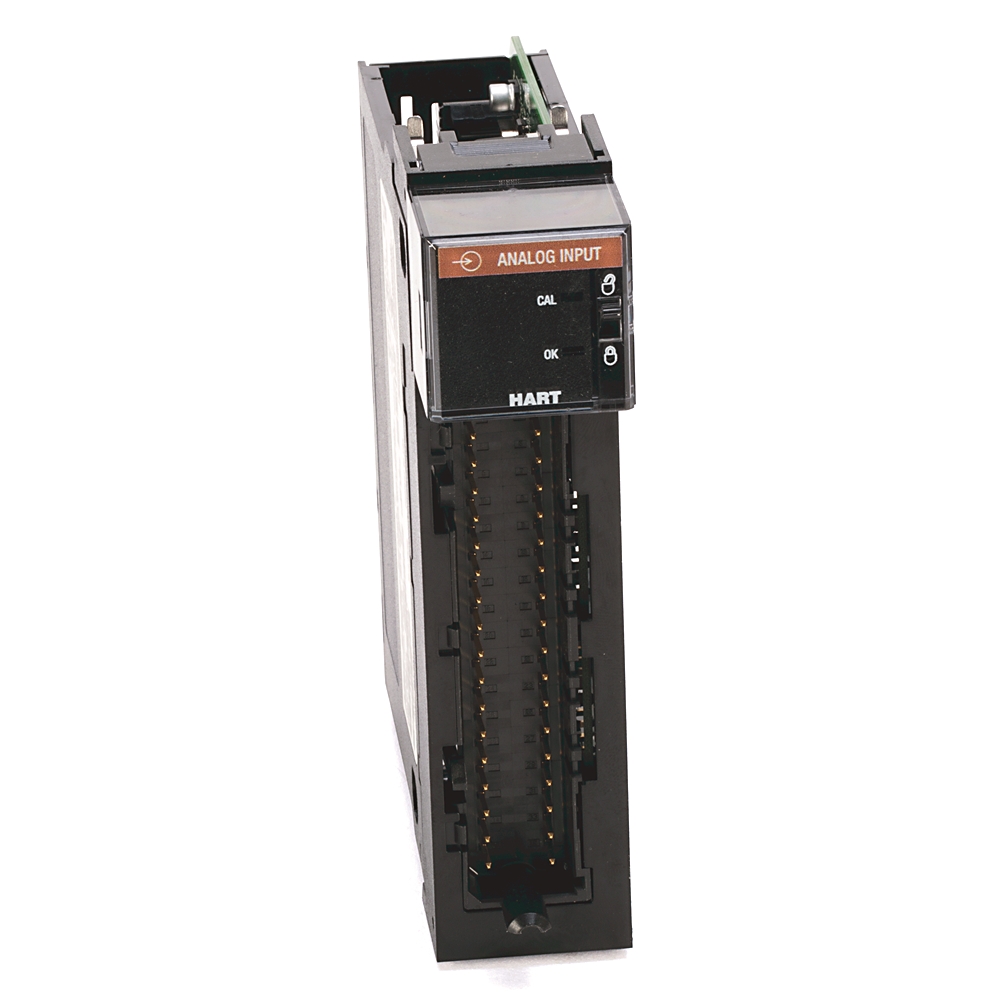

8 differential voltage or current inputs, HART interface, use 1756-TBCH, 1756-TBS6H

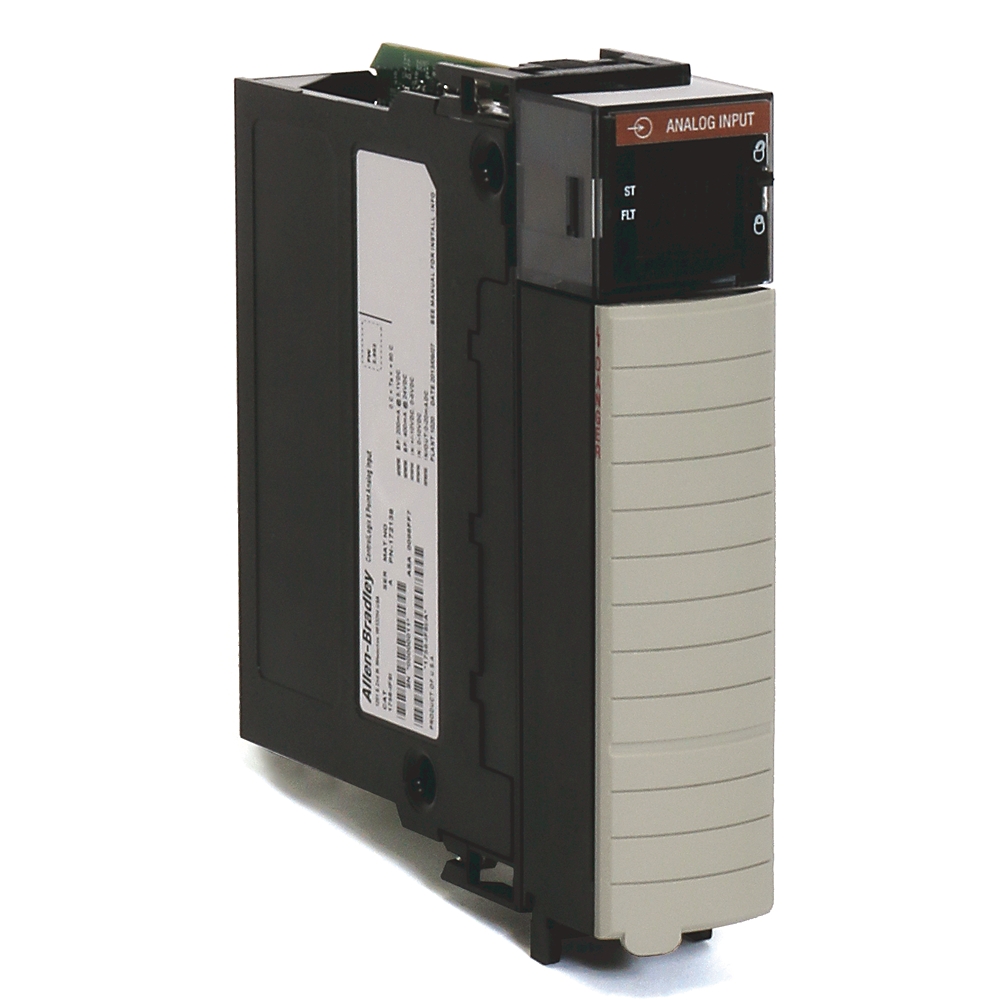

8 individually isolated inputs, current or voltage, use 1756-TBCH, 1756-TBS6H

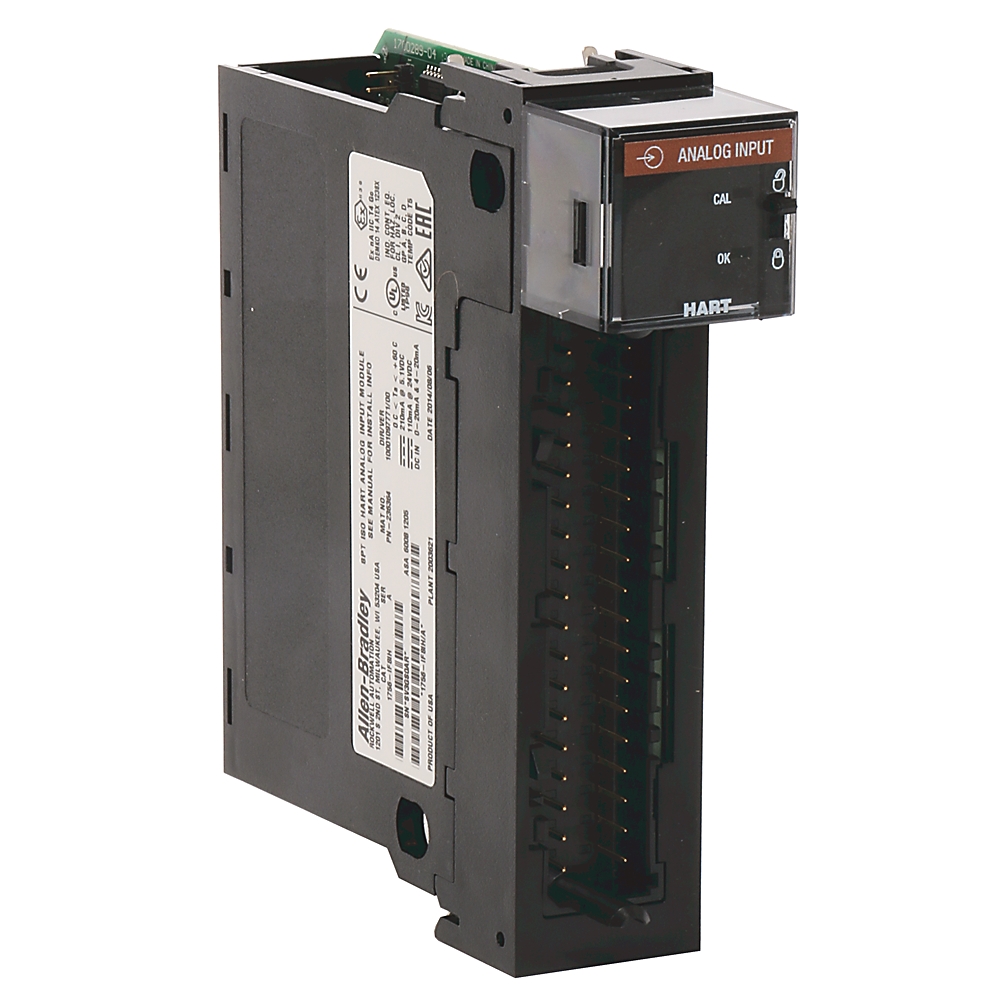

8 individually isolated current inputs, HART interface, use 1756-TBCH, 1756-TBS6H
